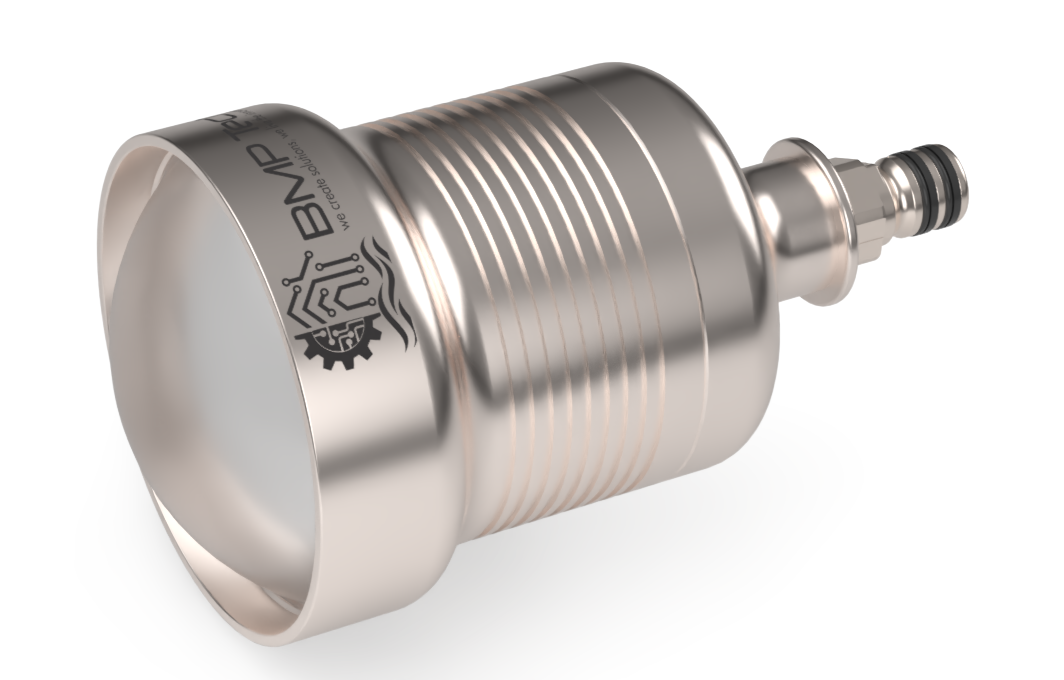

UV LED Light BLT-365UV-001
80W subsea UV lighting for inspection and fluorescence detection.
Ultraviolet light engineered and manufactured by BMPTECH for subsea inspection that demands high luminous intensity in offshore environments.
The UV LED Light BLT-365UV-001 is an ultraviolet lighting unit designed by BMPTECH for operations ranging from oil leak detection to advanced ship hull inspection. Rated at 80W with a power supply operating from 63 to 220 VAC and 24 to 300 VDC, the light delivers consistent performance and integration flexibility across different platforms and ROV systems. The electronics, mechanical design, and firmware are developed in-house, enabling selectable operating modes, self-diagnostics, and software-based adjustments. The external housing is machined from 6Al4V GR5 titanium alloy, rated for depths down to 4,500 meters, in a compact 100mm diameter by 125mm length form factor. The unit ships with a wide range of connectors and cabling, with the BMPTECH Quick Connector Series as the recommended interface for reliable connection and easy field maintenance.
Applications
- Oil leak detection on subsea structures and pipelines
- Ship hull inspection using fluorescence techniques
- High-intensity subsea inspection integrated with ROV systems
- UV lighting support in offshore survey and maintenance operations
Key features
- 80W output in the UV wavelength for fluorescence excitation during subsea inspection
- Wide-range power supply from 63 to 220 VAC and 24 to 300 VDC, compatible with different platforms and ROVs
- Housing machined from 6Al4V GR5 titanium alloy, rated for depths down to 4,500 meters
- Selectable operating modes, self-diagnostics, and software-based adjustments, with firmware developed by BMPTECH
- Compact 100mm diameter by 125mm length form factor for integration in confined spaces
- Compatible with the BMPTECH Quick Connector Series for reliable connection and fast field maintenance
Specifications
| Model | BLT-365UV-001 |
|---|---|
| Power | 80W |
| Power input | 63 to 220 VAC and 24 to 300 VDC |
| Housing material | 6Al4V GR5 titanium alloy |
| Maximum depth | 4,500 meters |
| Dimensions | 100mm diameter x 125mm length |
| Recommended connector | BMPTECH Quick Connector Series |
| Connector | BMPTECH Quick Connector Series (recommended); Burton; Subconn; Teledyne; SAIV; among others (contact us). |
Specifications subject to change without notice. Contact us for the full datasheet.
